Electrical Wiring Simulator

Electrical Wiring Simulator PC

3.0Version: 7.3

Louie Juera

Download

Download Electrical Wiring Simulator on PC With GameLoop Emulator

Electrical Wiring Simulator, is a popular steam game developed by Electrical Wiring Simulator. You can download Electrical Wiring Simulator and top steam games with GameLoop to play on PC.

This application is a dissertation project of Engr. Louie C. Juera, Ph.D.

EARN FREE CERTIFICATE NOW!

Available courses:

a. Basic Electrical Theories (with Written Assessment)

b. Basic Electrical Wiring (with Practical Assessment)

Electrical Diagram ---> Wiring Simulation ---> Circuit Simulation

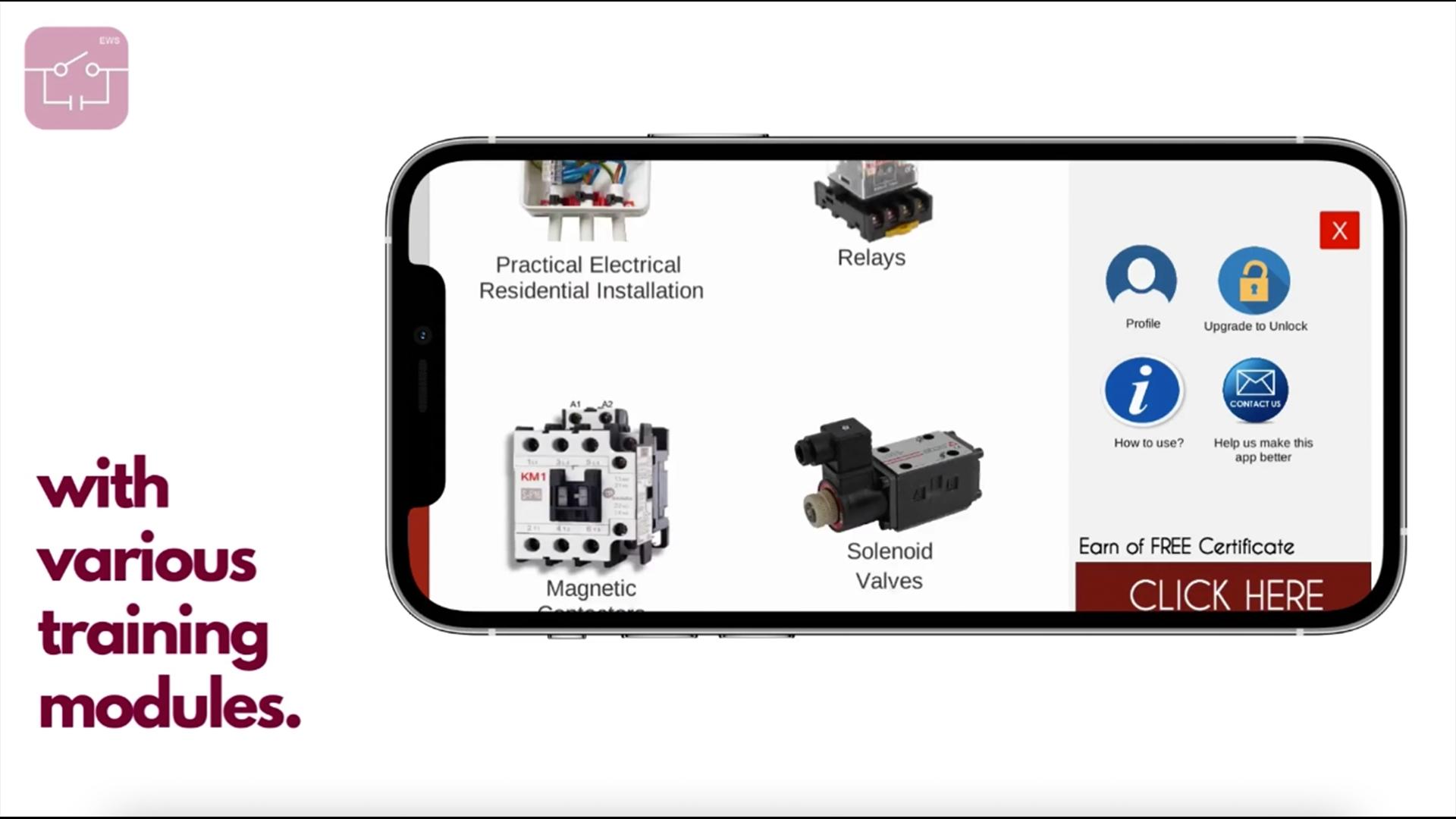

Following the given electrical diagram, you can wire the terminals of the actual picture of components (NOT schematic symbol). If wired correctly, you will be able to press pushbuttons or switches to simulate the operation of the system. It will animate the loads such as turning ON and OFF the lamps, running and stopping induction motors, hydraulic motors, and pneumatic cylinders.

This theses project aims to help students during online learning or distance learning amidst the pandemic. EWS will attempt to promote the skill development of engineering students, especially in marine engineering, electrical engineering, electronics engineering, and control engineering.

How to use: https://youtu.be/L6S7YhoZyFQ

Lecture Playlist: https://www.youtube.com/watch?v=FgXTFFffz6E&list=PLJstzaOpPB6Gmw1BR_-LrwBzzEdV43phW

Names of activities as of March 1, 2022:

1. DC: Simple source lamp

2. DC: Normally open switch

3. DC: Normally closed switch

4. DC: Series loads (for experimental purposes only)

5. DC: Parallel loads

6. DC: Simple Series-Parallel

7. DC: Make or Break

8. DC: Make or Break 2

9. DC: Many lamps

10. DC: Many lamps 2

11. DC: Measuring voltage

12. DC: Measuring current

13. AC: Simple AC lamp

14. AC: Simple series bulbs (for experimental purposes only)

15. AC: Switched series bulbs (for experimental purposes only)

16. AC: Simple parallel bulbs

17. AC: Switched parallel bulbs

18. AC: Multi-switched parallel bulbs

19. AC: Simple 2-way switch

20. AC: 2-way switched bulbs

21. Contactor: Magnetic contactor

22. Contactor: Normally open contact

23. Contactor: Normally close contact

24. Contactor: Holding contact

25. Contactor: Make or break contacts

26. Contactor: Interlocking circuit

27. Contactor: Holding lamps

28. Contactor: Interlocking lamps

29. Relay

30. Relay: Normally open relay

31. Relay: Alternating lamps

32: Relay: Holding alternating lamps

33. Relay: Interlocking relays

34. Relay: Interlocking and holding relays

35. Motor: 3-phase induction motor

36. Motor: Holding induction motor

37. Motor: DOL motor starter

38. Motor: DOL with overload relay

39. Hydraulic: Simple hydraulic motor

40. Hydraulic: Holding the hydraulic motor

41. Pneumatic: Single-acting cylinder

42. Pneumatic: Holding the pneumatic cylinder

43. Electronics: Simple LED Circuit

44. Electronics: Halfwave Rectifier

45. Electronics: Fullwave Rectifier (center-tapped)

46. Electronics: Fullwave Rectifier (bridge)

47. Electronics: Fixed Bias Transistor

48: Electronics: BJT Water Level

**Paid version

- Unlocks all modules

- Supports Offline Mode

- Supports for further improvement

Request from the Developers:

"Before giving 1 star because of advertisements, please consider the following:

1. This app is completely free, you can access all the activities without restriction

2. We spend several months developing this app and we are still currently doing updates

3. We are not a big company, we only consist of very few individuals. Hence, we lack personal and technical support.

4. We develop this app to help students as much as we can.

5. If you are really annoyed by the ads, please consider the remove ads in-app purchase. We will appreciate your support. Thank you.
