Macro Simulator CNC Demo Introduction

This is a demo version that only allows you to write programs by hand or use sample programs. Functions such as opening a file or saving have been disabled. This version allows you to use up to 20 lines!

This software is also available for desktop platforms (Windows, MacOS, and Linux). To find out more, check:https://kandksoftware.github.io/macro-terminal-pro/

Macro Simulator CNC (successor to Macro Terminal CNC) is a powerful, cross-platform CNC code editor and backplotter with a micro command system (special keywords and cycles)* and an Advanced Error Recognition System (AERS) for G-Code (RS-274) and Fanuc Macro B programs (parametric programming) for 3-axis CNC milling machines.

* (only extended version)

Commands (only extended version):

- TOOL - tool call

- SET - changing global data used by other commands

- CYCLE - drilling/tapping cycles

- POCKET - pocket milling (circular and rectangle) and groving milling (circular and rectangle)

- SHOULDER - shoulder milling (circular and rectangle)

- FACE - face milling (3 strategies)

- PATTERN - drilling patterns (4 strategies)

- THREADING - milling threading external and internal

- BORING - helical boring

- MIRROR - reverse coordinates in x, y axis

- ZOOM - resize coordinates x and y

- SHIFT - move coordinates in x, y axis

Program export(disabled in demo version):

- export to pure g-code (converting macro or built-in cycles)

- code compressing

- removing empty lines

- adding decimal point

- adding automatically information about the tool used (at the beginning of the program as before calling it)

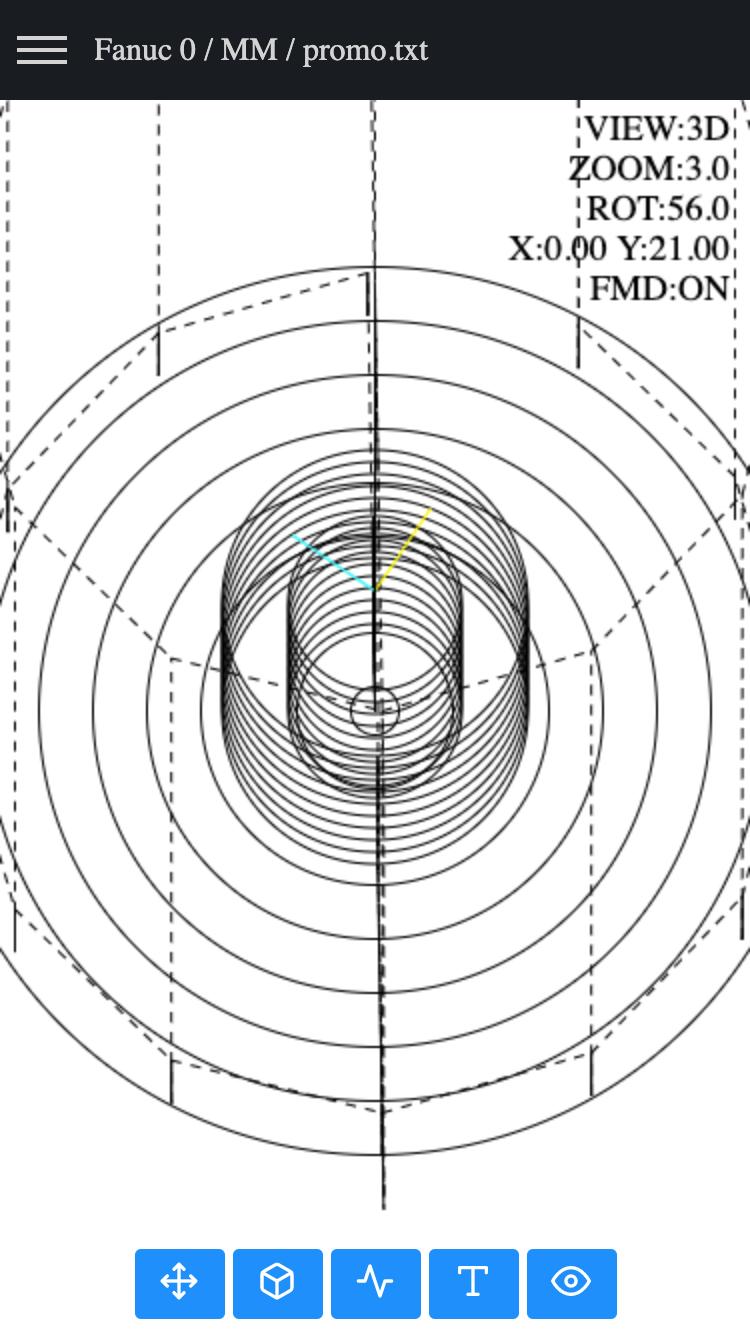

Viewport information:

- 3D tool path

- simulation (play, play fast. stop, next, reset, previous, rewind)

- 5 view modes (3D, XY, XY removal, XZ, YZ)

- image rotation in x axis

- zoom

- shift image

- show/hide rapid movement

- simplified representation of tools (max 50 tools)

- metric/imperial mode

- 3 themes (dark, bright, black & white)

G-code/Fanuc/Haas/Mazak ISO support:

- absolute, incremental and polar mode

- G16 polar coordinate

- G51 scaling

- G52 local work shift

- G65/G66 macro subprogram call

- G68 coordinate system rotation

- G98 retract to initial Z value

- G99 retract to R value

- M98 subprogram (multiple formats)

- repeat canned cycle (L and K)

- circular interpolation supported by using (I, J or R)

Haas support:

- G70 Bolt Hole Circle

- G71 Bolt Hole Arc

- G72 Bolt Holes Along an Angle

Macro (Fanuc Custom Macro B) support:

- keywords: IF, THEN, GOTO, WHILE, DO, END

- math functions supported: sin, cos, tan, asin, acos, atan, sqrt, abs, round, fix, fup, ln, exp, pow

- local, common variables and some of the most popular system variables:

Macro debugger:

- showing current line

- assigned and created variables

- math and logical calculations in line

- for IF and WHILE statement shows the actual value (true or false)

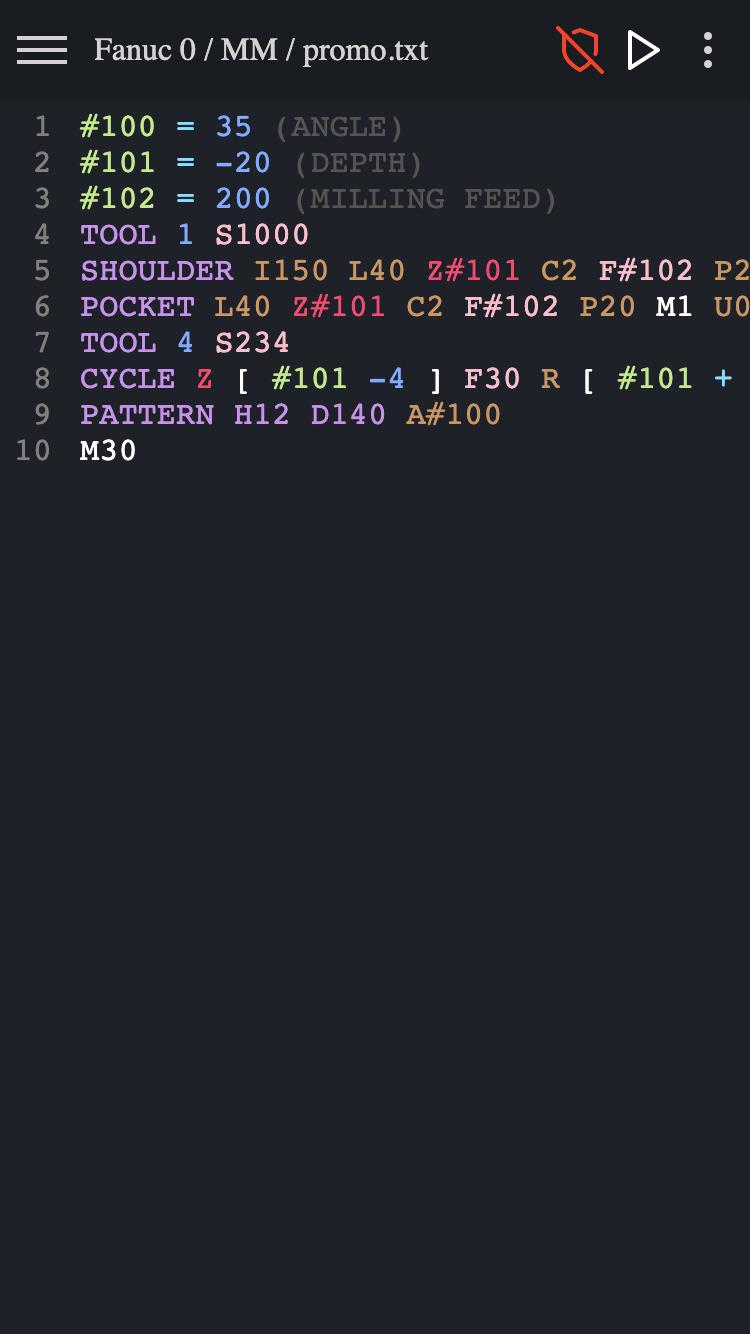

Code editor:

- code highlighting

- formatting

- undo (50 times)/redo

- adding/removing EOB

- adding/removing %

- adding decimal point

Files:

- new project

- open file(disabled in demo version)

- open template(disabled in demo version)

- append(to add a subroutine locally)(disabled in demo version)

- save(disabled in demo version)

- save as(disabled in demo version)

- export(to export macro program as a pure g code program)(disabled in demo version)

- file extension supported:nc, cn, ncc, cnc, eia, txt

Input compatibility:

Fanuc 0, Fanuc 6, Fanuc 10, Fanuc 11, Fanuc 12, Fanuc 15, Fanuc 16, Fanuc 18, Fanuc 20, Fanuc 21, Fanuc 30i, Fanuc 31i, Fanuc 32i, Fanuc 35i, Haas, Mazak ISO, Siemens 802D and others using CNC macros based on Fanuc Custom Macro B.

Output compatibility (export):

same as the selected input control, can also be converted to Heidenhain, Sinumerik or other control on request

Languages:

English, Français, Deutsche, taliano, Español, 한국어, 日本語, Polski, Magyar, Pусский, Português, 中文, Türkçe
