Multimeter/Oscilloscope on PC

Multimeter/Oscilloscope, coming from the developer NECO, is running on Android systerm in the past.

Now, You can play Multimeter/Oscilloscope on PC with GameLoop smoothly.

Download it in the GameLoop library or search results. No more eyeing the battery or frustrating calls at the wrong time any more.

Just enjoy Multimeter/Oscilloscope PC on the large screen for free！

Multimeter/Oscilloscope Introduction

This Digital Multimeter/Oscilloscope help you to

measure:

1 - Volts

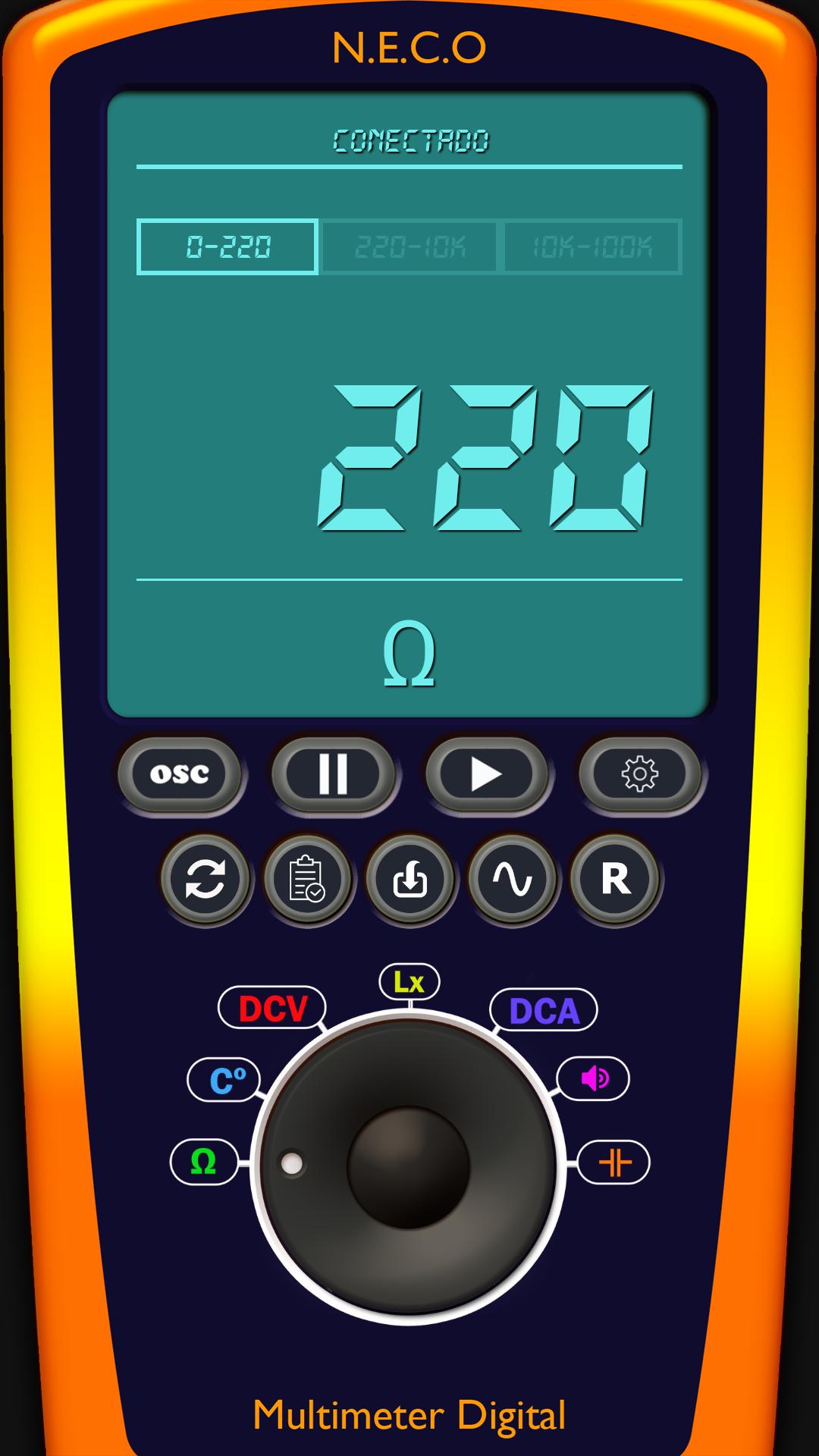

2 - Ohms

3 - Temperature

4 - The light (lx)

5 - Frequency

6 - Amplitude

7 - Oscilloscope included

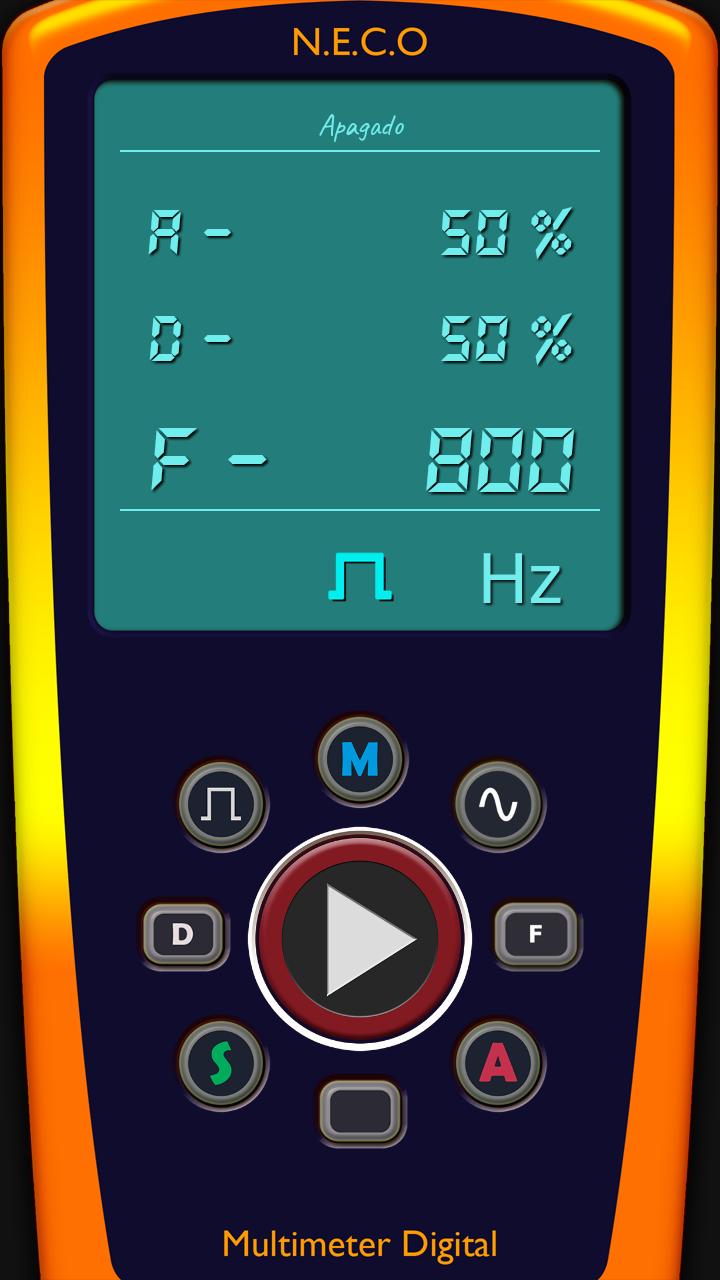

8 - Sound Generator sine/square wave 0Hz - 20000Hz included(in version pro)

9 - Color code resistance calculator

10 - Save measuring data!!

11 - Added capacitance meter from 1nF to 10000 mF

12 - Inductance meter!

It's easy to build, you just need:

1 -A arduino uno or nano

2 - Bluetooth module(HC-05 or HC-06)

3 - Temperature sensor(TMP36)

4 - Some resistances.

And for Oscilloscope:

1 - A old headphones with 4 pins

2 - Capacitor from 0.1mF to 1mF.

MY WEB PAGE : https://www.neco-desarrollo.es

Please watch video tutorial How to use oscilloscope:

https://youtu.be/ZwNe8yEjjxo

**For build the circuit follow this**

LINK FOR DOWNLOAD SCHEMATIC:

http://neco-desarrollo.es/arduino-multimetro

LINK FOR DOWNLOAD ARDUINO SKETCH HERE:

http://neco-desarrollo.es/arduino-multimetro

MY WEB PAGE:

www.neco-desarrollo.es

Councils to improve the precision:

1 - Check the voltage of 5v pin of arduino after connecting everything, it is the reference voltage to measure ohms when connecting the bluetooth module the voltage drops a bit, it can be in 4.8v, put exact value in the arduino code

2 - The values ​​of the resistances must be precise

2 - You must weld all the connections to avoid parasitic resistances

Multimeter/Oscilloscope try it now!
