Astable 555 Timer on PC

Astable 555 Timer, coming from the developer Randle C. Sink, is running on Android systerm in the past.

Now, You can play Astable 555 Timer on PC with GameLoop smoothly.

Download it in the GameLoop library or search results. No more eyeing the battery or frustrating calls at the wrong time any more.

Just enjoy Astable 555 Timer PC on the large screen for free！

Astable 555 Timer Introduction

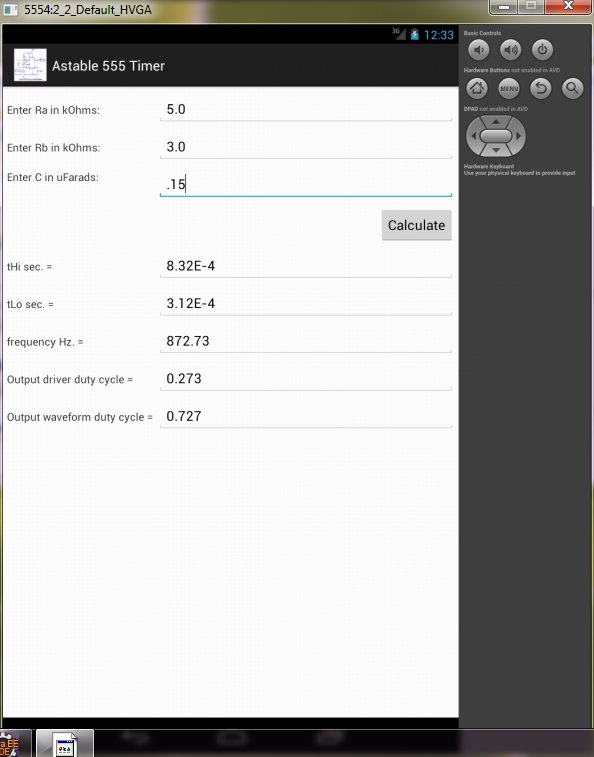

Adding a second resistor Rb to the 555 timer and connecting the trigger input to the threshold input causes the timer to self-trigger and run as a multivibrator. The capacitor C will charge through Ra & Rb and discharge through Rb only. The duty cycle can be controlled by changing the values of Ra and Rb. Input Ra, Rb (in kOhms) & C (in uFarads) then push the Calculate button to get the values for the output high-level duration tH and low-level duration tL and frequency. Output driver and output waveform duty cycles are also determined.
