DiCiDe: Digital Circuit Design on PC

DiCiDe: Digital Circuit Design, coming from the developer Adrián Vaca Humanes, is running on Android systerm in the past.

Now, You can play DiCiDe: Digital Circuit Design on PC with GameLoop smoothly.

Download it in the GameLoop library or search results. No more eyeing the battery or frustrating calls at the wrong time any more.

Just enjoy DiCiDe: Digital Circuit Design PC on the large screen for free！

DiCiDe: Digital Circuit Design Introduction

Solve combinational systems up to 8 variables, 8 outputs by Quine-McCluskey

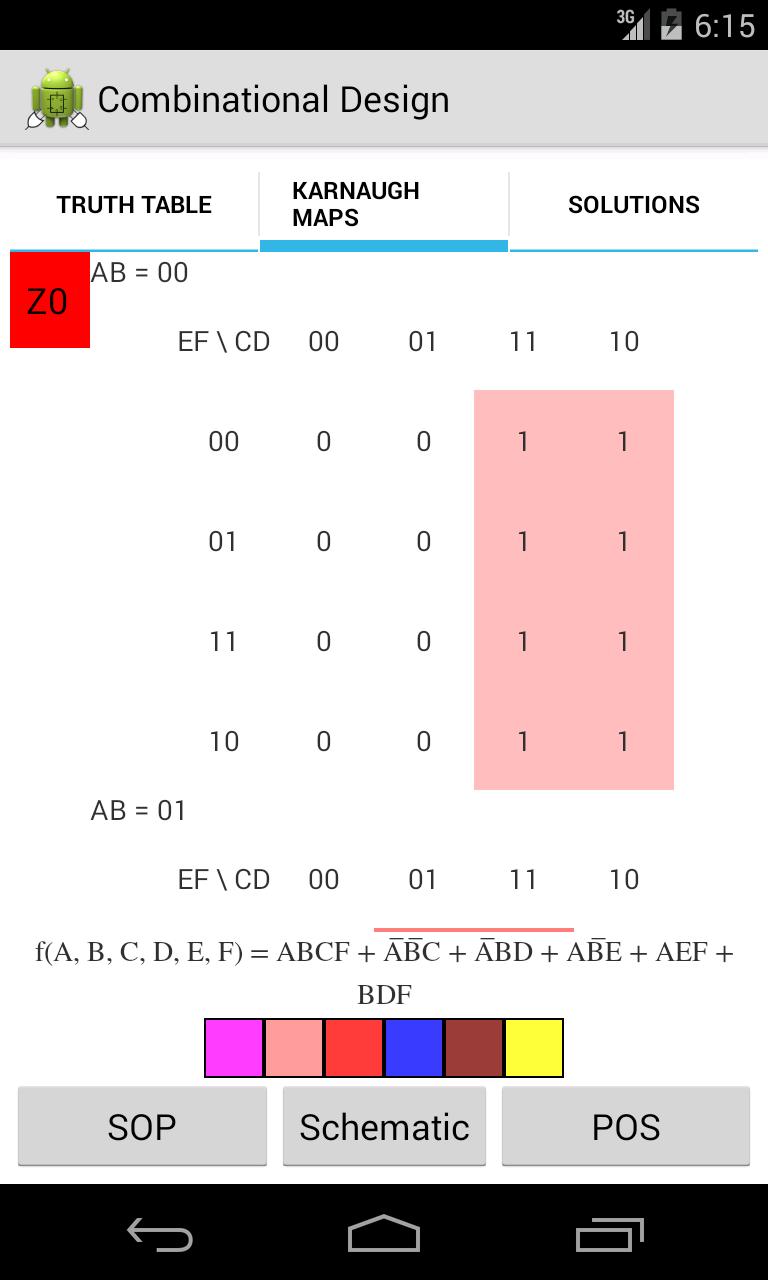

- Display loops on Karnaugh maps

- Display solutions in boolean algebraic form

- Plot schematic

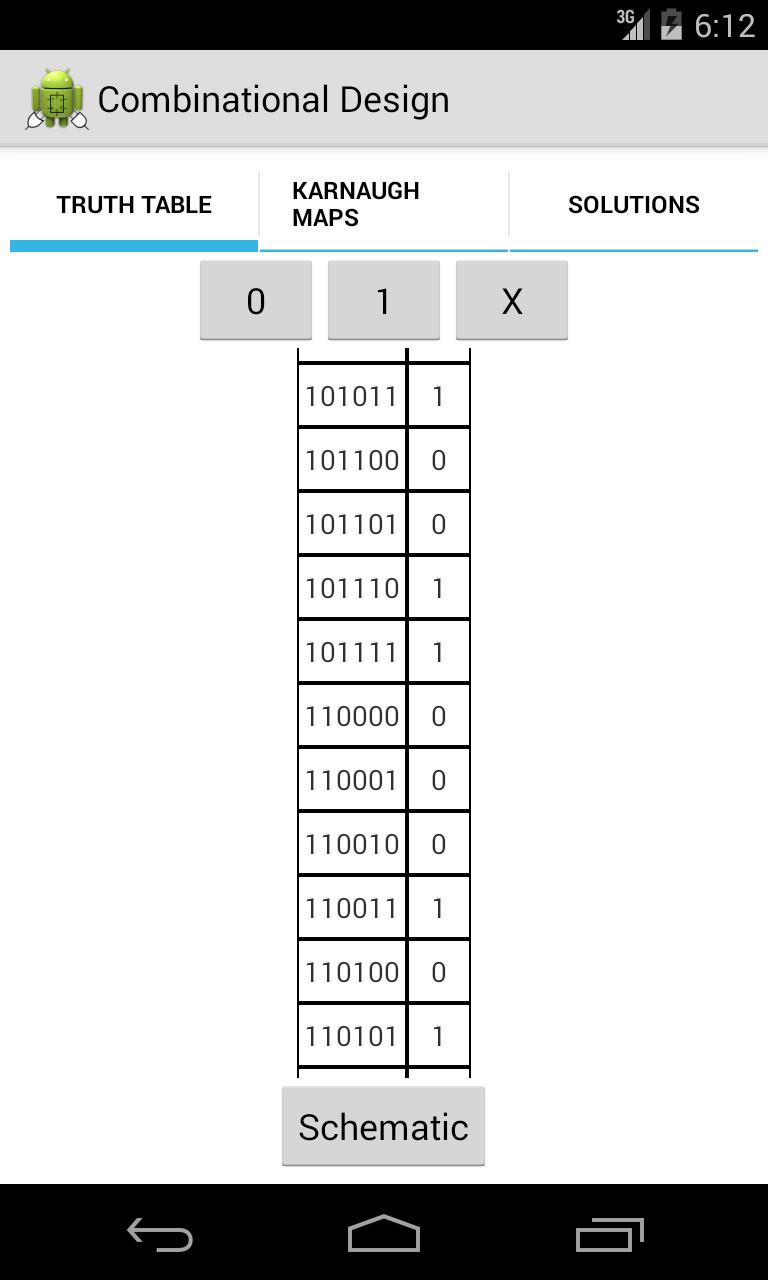

Tip: You can fill rows or columns of the truth table at once by first tapping on their header.

Design sequential systems (synchronous deterministic finite state machines) up to 5 inputs, 5 outputs

- Moore and Mealy automata

- State diagram capture (long tap to edit states and transitions)

- State codification and flip-flop excitation tables

- Display solutions in boolean algebraic form

- Plot schematic

Tip: You can change the state codification by tapping on the cells of the qi column.

Please, do leave your feedback and suggestions either by email or in the comments below.
