DC Motor Introduction

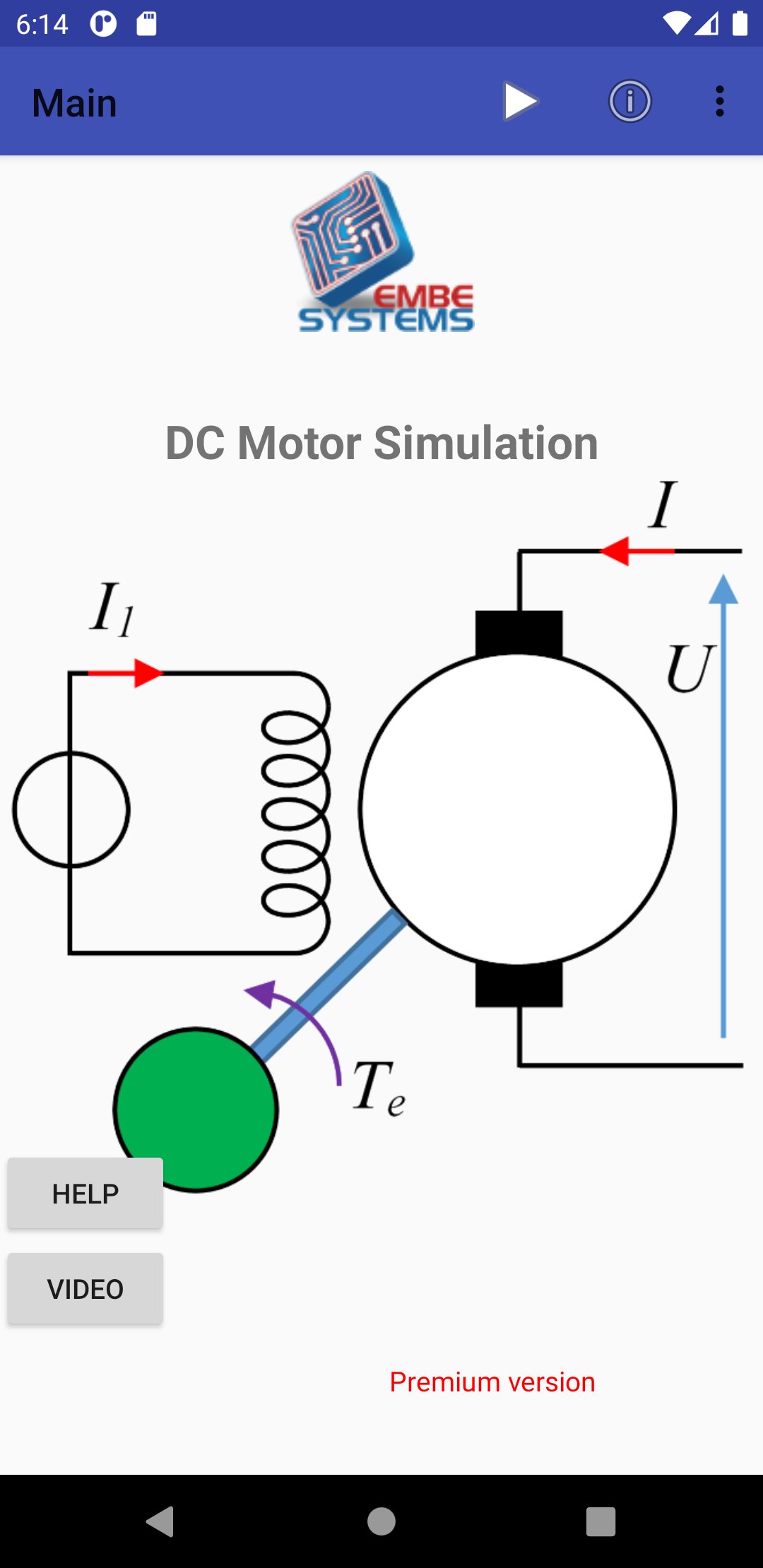

This application allows to simulate the DC motor in transient and steady state and to visualize curves and values.

It allows to choose between 4 operating modes:

Ramp start: The armature voltage rises in a ramp

Voltage step: The armature voltage is imposed in step

Fixed shaft: Locked rotor test

Speed drop: Speed Release Test, Motor Not Powered

Thank you for considering a 5-star vote for this app, which will allow its wide dissemination to the community of students and teachers of Electrical Engineering. If you have any concern, please let me know before voting, by email:

im_support@embesystems.com

I could certainly provide explanations, without getting a vote below 5 stars.

I am a teacher-researcher in EE: Researchgate Profil

Thank you for encouraging the development of this kind of apps, by contributing through an in-app purchase of the Premium offer.

Summary

The DC Motor App helps students and teachers to study and understand the operation of the Direct Current Motor (DCM) in transient and steady state.

Several events can be applied during the simulation, such as changes in load torque at different times, armature voltage steps, excitation current, as well as resistive parameter variations.

Simulations can be shared and exported to other apps (Gmail, photos, Excel sheets, documents).

Main characteristics:

Simulation of the Direct Current Motor (DCM) in transient and steady state.

Curves of armature current, excitation current, armature voltage, speed, electromagnetic and load torque, power, as a function of time and in steady state

Different operating modes

Change motor parameters and save them in local files

Apply several load torque events, armature voltage... in the simulation

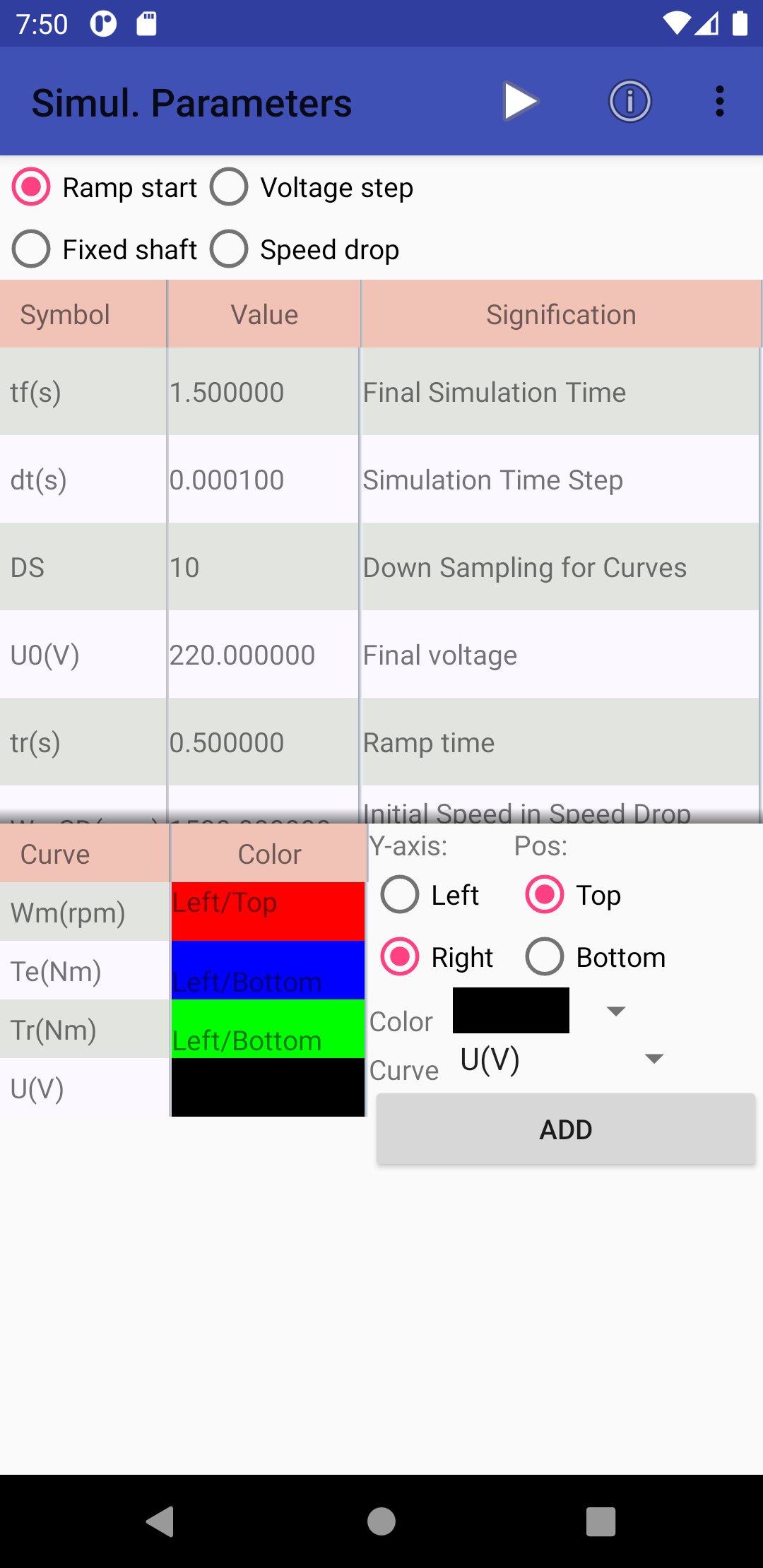

Simulation parameters (final time, step time...)

Displays the curves by splitting the window into 2 graphs, with zoom and display of values on the curve point

Premium Version:

Additional events (armature voltage, excitation current, armature resistance) instead of only load torque events

Display an infinity of curves on the 2 graphs with selection of the color, the top/bottom position and the primary or secondary Y-axis of the graph. It is limited to 3 curves in the basic version

Load previously saved configuration, and also share them by email

Export data: graph images, graph data (xls/csv), machine parameters

And of course you help the developer, who is a teacher and researcher in electrical engineering, in his approach to develop educational apps.
