گیم لوپ ایمولیٹر کے ساتھ PC پر OBDDiag Toyota ڈاؤن لوڈ کریں۔

پی سی پر OBDDiag Toyota

OBDDiag Toyota، جو ڈویلپر OBD Scantech سے آرہا ہے، ماضی میں اینڈرائیڈ سسٹم پر چل رہا ہے۔

اب، آپ پی سی پر OBDDiag Toyota آسانی سے GameLoop کے ساتھ چلا سکتے ہیں۔

اسے GameLoop لائبریری یا تلاش کے نتائج میں ڈاؤن لوڈ کریں۔ مزید غلط وقت پر بیٹری یا مایوس کن کالوں پر نظر نہیں ڈالی جائے گی۔

بس بڑی سکرین پر OBDDiag Toyota PC کا مفت میں لطف اٹھائیں！

OBDDiag Toyota تعارف

OBD2 App with Ads that will communicate with your Toyota Engine ECU Vehicles. The Generic OBDII is also included and will work with any OBD2 Complaint Vehicle. The app requires OBDII ELM 327 Bluetooth (See Below). It will read Toyota Enhance/Extended PIDS (130 available) and Perform Output Test (70 available). Not all of the PIDS are supported by the vehicle. It will support certain ranges of Toyota Models and Years (2000 - 2006). It may work on some of the Lexus Models.

Currently, It will Support ISO-9141 PROTOCOL ONLY for the Enhanced Toyota! CAN BUS is not supported for the Toyota's!

The Generic OBD2 supports all of the Protocols.

-----------------------------------------------------------

The App Supports the Following (ISO-9141)

-----------------------------------------------------------

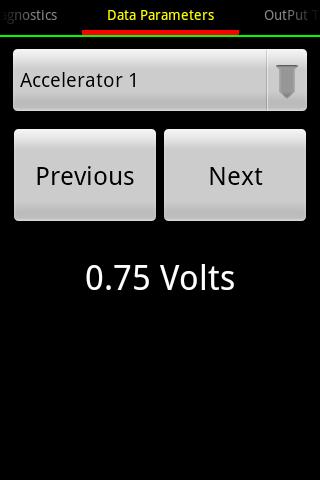

* Enhance Data Parameters

* Output Test

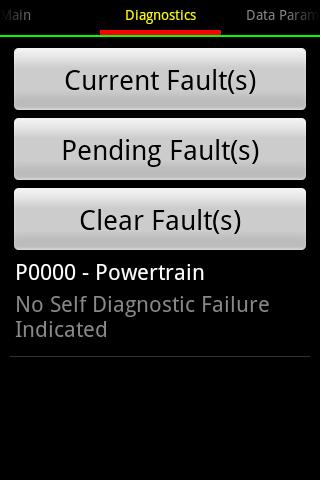

* Mode 3 - Read Faults

* Mode 4 - Clear Faults

* Mode 7 - Pending Faults

* Generic Data Parameters (Any OBD2 Complaint Vehicle)

* Readiness

* O2 Sensor Location

* Mode 2 - Freeze Frame Data

* Mode 3 - Read Current Faults

* Mode 4 - Clear Faults

* Mode 6 - On-board Test Result

* Mode 7 - Read Pending Faults

* Mode 9 - VIN, Performance Tracking Data, ECU Name, Calibration and Verification ID

* Mode A - Read Stored Faults

Output Test parameters is not filtered thoroughly and some of the Output Test will not work, because the ECU does not support it.

Toyota Enhance Powertrain: Tested successfully on the following vehicles

* 2004 Toyota Camry

* 2002 Toyota Camry Solara

HARDWARE REQUIREMENT: ELM 327 (Clone Type) Bluetooth Adapter or OBDLink MX

Vendors Type: CHX, OBDII, BAFX Bluetooth Device tested OK.
