Descarga Blue VNA en PC con GameLoop Emulator

Blue VNA en PC

Blue VNA, proveniente del desarrollador Dan Toma, se ejecuta en el sistema Android en el pasado.

Ahora, puedes jugar Blue VNA en PC con GameLoop sin problemas.

Descárgalo en la biblioteca de GameLoop o en los resultados de búsqueda. No más mirar la batería o llamadas frustrantes en el momento equivocado nunca más.

Simplemente disfrute de Blue VNA PC en la pantalla grande de forma gratuita！

Blue VNA Introducción

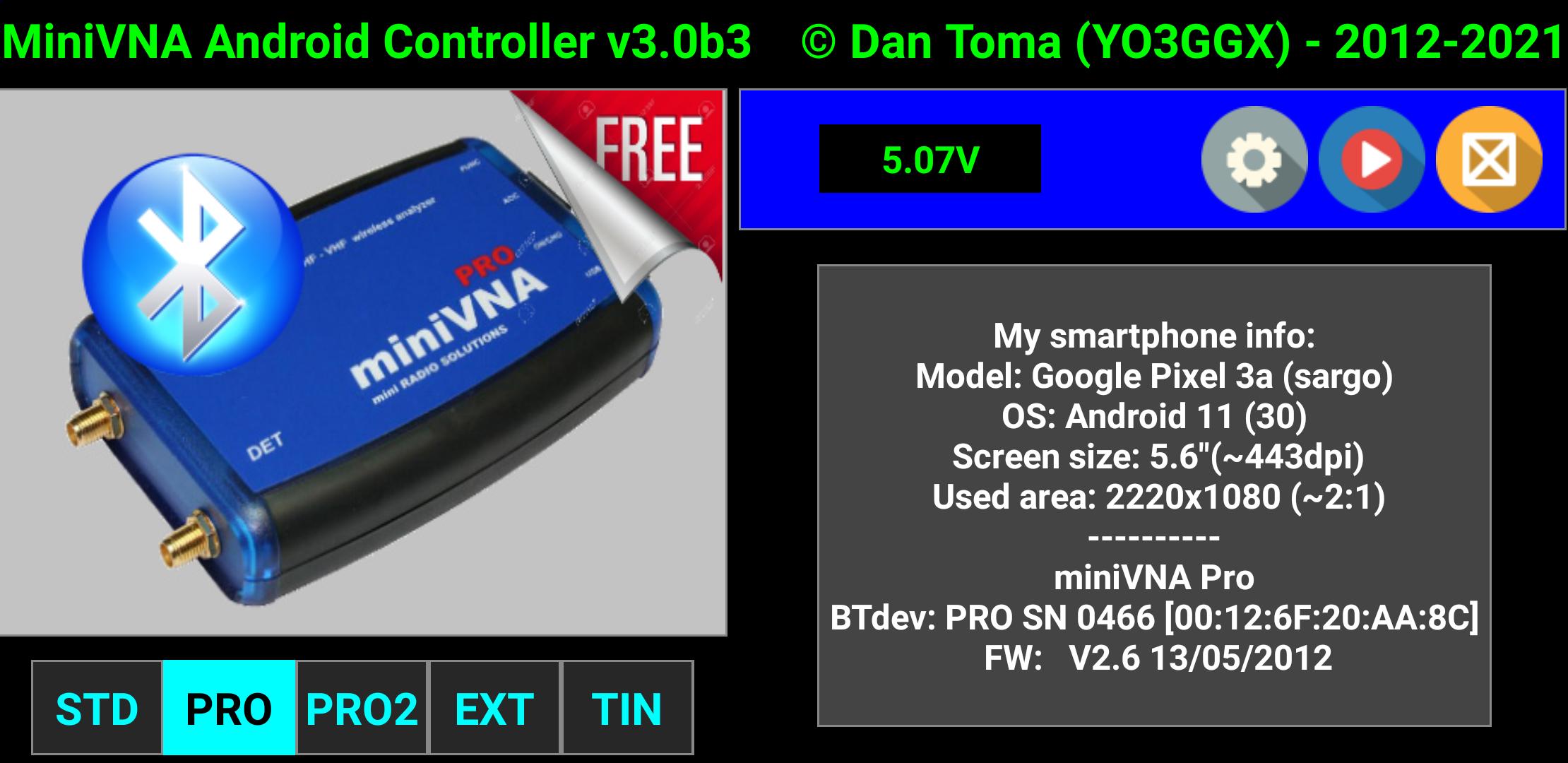

This application can be used to fully control a miniVNA Vector Network Analyzer. Your feedback is essential to make it better. Current version has the following features:

- fully control the data acquisition from a miniVNA, with or without the Extender;

- work over USB, bluetooth or WiFi (if available);

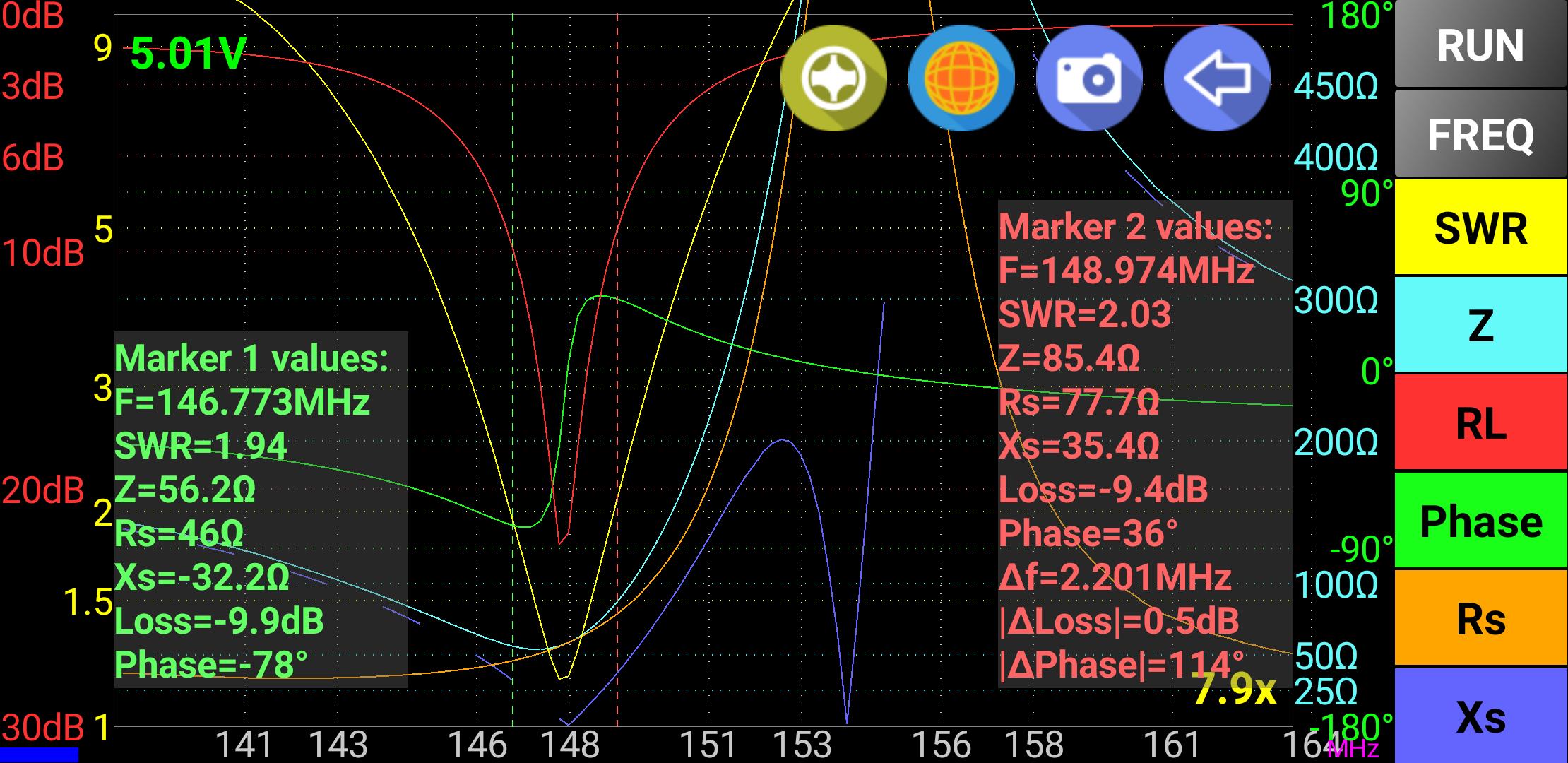

- can display reflection data in rectangular or Smith Chart mode;

- export data in CSV, ZPLOTS or S1P formats compatible with many existing applications;

- parameters that can be measured : SWR, |Z|, Return Loss, Phase, Rs, |Xs| for miniVNA and signed Xs for miniVNA Pro;

- you can select one of the predefined bands (all HAM bands), HF (0.1 – 30MHz), or a custom frequency interval (anywhere between the frequency range of the connected analyzer);

Frequency generator mode with the following features:

- 2 independent channels (for miniVNA pro) or 1 channel (for miniVNA standard or Tiny);

- normal or sweeper mode;

- independent attenuator control per each channel (from -60dB to 0dB), only for miniVNA Pro;

- adjustable phase difference between the channels (0-180 deg);

Cable data mode with the following features:

- cable length is measured in 2 steps, for a better precision (second step reduce the frequency interval);

- operate in meter or feet mode;

L,C,R,X-tal mode:

- measure x-tal resonance frequency and Q in manual or auto mode

- automatically measure inductors, capacitors and resistors

For the full list of features check included help or user guide available on my web site.

Thank you in advance for your feedback.

Dan YO3GGX
